| 3/4” Dr. Deep Impact Socket | ||||||
|---|---|---|---|---|---|---|
| Item no. | Size | Length | D1(mm) | D1(mm) | PCS/CTN | Box |
| 96510017 | 17mm | 90mm | 31 | 40 | 24 | 6 |
| 96510018 | 18mm | 90mm | 32 | 40 | 24 | 6 |
| 96510019 | 19mm | 90mm | 33 | 40 | 24 | 6 |
| 96510020 | 20mm | 90mm | 35 | 40 | 24 | 6 |
| 96510021 | 21mm | 90mm | 35 | 40 | 24 | 6 |
| 96510022 | 22mm | 90mm | 37 | 40 | 24 | 6 |
| 96510024 | 24mm | 90mm | 38 | 40 | 24 | 6 |
| 96510025 | 25mm | 90mm | 40 | 40 | 24 | 6 |
| 96510026 | 26mm | 90mm | 40 | 40 | 24 | 6 |
| 96510027 | 27mm | 90mm | 42 | 42 | 24 | 6 |
| 96510028 | 28mm | 90mm | 42 | 42 | 24 | 6 |
| 96510029 | 29mm | 90mm | 46 | 44 | 24 | 6 |
| 96510030 | 30mm | 90mm | 46 | 44 | 16 | 4 |
| 96510032 | 32mm | 90mm | 48 | 44 | 16 | 4 |
| 96510033 | 33mm | 90mm | 48 | 44 | 16 | 4 |
| 96510034 | 34mm | 90mm | 50 | 44 | 16 | 4 |
| 96510035 | 35mm | 90mm | 52 | 44 | 16 | 4 |
| 96510036 | 36mm | 90mm | 54 | 44 | 16 | 4 |
| 96510038 | 38mm | 90mm | 56 | 44 | 16 | 4 |
| 96510041 | 41mm | 90mm | 60 | 44 | 16 | 4 |
| 96510042 | 42mm | 90mm | 60 | 44 | 16 | 4 |
| 96510043 | 43mm | 90mm | 62 | 44 | 16 | 4 |
| 96510044 | 44mm | 90mm | 63 | 44 | 16 | 4 |
| 96510045 | 45mm | 90mm | 65 | 44 | 16 | 4 |
| 96510046 | 46mm | 90mm | 65 | 44 | 12 | 3 |
| 96510050 | 50mm | 90mm | 69 | 54 | 12 | 3 |
| 96510052 | 52mm | 90mm | 72 | 54 | 12 | 3 |
| 96510055 | 55mm | 90mm | 76 | 54 | 12 | 3 |
| 96510060 | 60mm | 90mm | 83 | 54 | 12 | 3 |
| 96510065 | 65mm | 90mm | 87 | 54 | 12 | 3 |
| 96510070 | 70mm | 90mm | 87 | 54 | 12 | 3 |
| 1” Dr. Deep Impact Socket | ||||||
| Item no. | Size | Length | D1(mm) | D1(mm) | PCS/CTN | Box |
| 98510017 | 17mm | 90mm | 34 | 50 | 18 | 3 |
| 98510019 | 19mm | 90mm | 37.5 | 50 | 18 | 3 |
| 98510021 | 21mm | 90mm | 37.5 | 50 | 18 | 3 |
| 98510022 | 22mm | 90mm | 40 | 50 | 18 | 3 |
| 98510024 | 24mm | 90mm | 42 | 50 | 18 | 3 |
| 98510026 | 26mm | 90mm | 45 | 50 | 18 | 3 |
| 98510027 | 27mm | 90mm | 46 | 50 | 18 | 3 |
| 98510028 | 28mm | 90mm | 47 | 50 | 18 | 3 |
| 98510029 | 29mm | 90mm | 48 | 50 | 18 | 3 |
| 98510030 | 30mm | 90mm | 50 | 50 | 18 | 3 |
| 98510032 | 32mm | 90mm | 50 | 50 | 18 | 3 |
| 98510033 | 33mm | 90mm | 52 | 52 | 18 | 3 |
| 98510034 | 34mm | 90mm | 52 | 52 | 18 | 3 |
| 98510035 | 35mm | 90mm | 53 | 53 | 18 | 3 |
| 98510036 | 36mm | 90mm | 54 | 54 | 16 | 3 |
| 98510038 | 38mm | 90mm | 55 | 54 | 16 | 1 |
| 98510041 | 41mm | 90mm | 61 | 54 | 16 | 1 |
| 98510042 | 42mm | 90mm | 63 | 54 | 16 | 1 |
| 98510045 | 45mm | 90mm | 66 | 54 | 16 | 1 |
| 98510046 | 46mm | 90mm | 67 | 54 | 16 | 1 |
| 98510050 | 50mm | 90mm | 72 | 54 | 8 | 1 |
| 98510052 | 52mm | 90mm | 75 | 54 | 8 | 1 |
| 98510055 | 55mm | 100mm | 80 | 54 | 8 | 1 |
| 98510060 | 60mm | 110mm | 86 | 54 | 8 | 1 |
| 98510065 | 65mm | 120mm | 92 | 54 | 4 | 1 |
| 98510070 | 70mm | 124mm | 99 | 54 | 4 | 1 |
| 98510075 | 75mm | 124mm | 104 | 86 | 4 | 1 |
| 98510080 | 80mm | 135mm | 109 | 86 | 4 | 1 |
| 98510085 | 85mm | 140mm | 115 | 86 | 4 | 1 |
| 98510090 | 90mm | 140mm | 123 | 86 | 2 | 1 |
| 98510095 | 95mm | 140mm | 123 | 86 | 2 | 1 |
| 985100100 | 100mm | 140mm | 135 | 95 | 2 | 1 |
| 985100105 | 105mm | 150mm | 142 | 95 | 2 | 1 |
| 985100110 | 110mm | 150mm | 148 | 95 | 2 | 1 |
| 985100115 | 115mm | 150mm | 152 | 95 | 2 | 1 |
Impact Accessories (Extension Bar & Adapter & Socket )

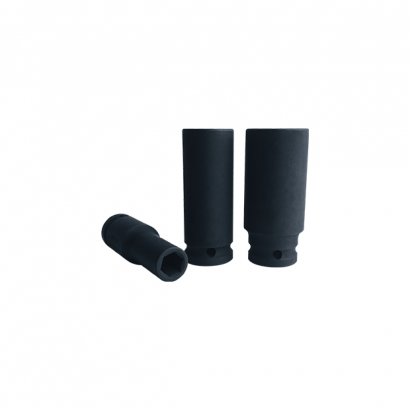

3/4” & 1” Dr. Deep Impact Socket
DETAIL
